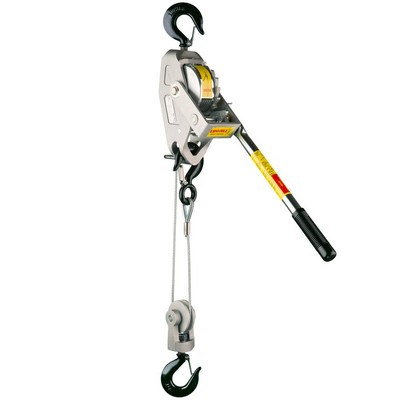

P15 Lug All cable ratchet winch hoist

USE :
This "winch" hoist can be used for lifting, handling, pulling (hauling) or mechanical tensioning.
The device is equipped with 3 hooks which allow it to be pulled in all positions.
This hoist is suitable for all trades.
Applications: lifting, pulling, moving, lowering, tightening, tensioning, etc.

SPECIFICATIONS :
Highly flexible cable with anti-corrosion treatment.
Hoist body in light aluminium alloy and anticorrosion.
Forged steel hooks with safety latch and free 360 rotation.
Shell block sheave lifting hook that enables to double the force.
Double ratchet system to secure holding in position.
The load lowering is done tooth by tooth.

ADVANTAGES :
• A range of ultraportable hoists for all building or repairing operations, particularly suitable for work at height.
• 3 hooks system that allows to work in any position.
• Approved as a lifting device.
• Handle lever is reversible and design as a fuse to prevent overloads.

P15-1 = Lug All cable ratchet winch hoist 500/1000 kg , Pulling strength on 1 strand: 500 kg - lifting height : 4 m , Pulling strength on 2 strands: 1000 kg - lifting height : 2 m , Cable Ø: 5.6 mm , Force on lever (kg): 40 , Dimensions: 530 x 115 x 130 mm
P15C14L6 = Lug All winch hoist 800/1600 kg , Pulling strength on 1 strand: 700 kg - lifting height : 6.6m , Pulling strength on 2 strands: 1400 kg - lifting height : 3.3 m , Cable Ø: 6.4 mm , Force on lever (kg): 48 , Dimensions: 780 x 150 x 130 mm
P15-1-9M = Lug All cable ratchet winch hoist 500/1000 kg , Pulling strength on 1 strand: 500 kg - lifting height : 9.2 m , Pulling strength on 2 strands: 1000 kg - lifting height : 4.6 m , Cable Ø: 5.6 mm , Force on lever (kg): 40 , Dimensions: 600 x 120 x 130 mm
P15-0 = Lug All cable ratchet winch hoist 250/500 kg , Pulling strength on 1 strand: 250 kg - lifting height : 7.6 m , Pulling strength on 2 strands: 500 kg - lifting height : 3.8 m , Cable Ø: 4.0 mm , Force on lever (kg): 30 , Dimensions: 530 x 115 x 130 mm
