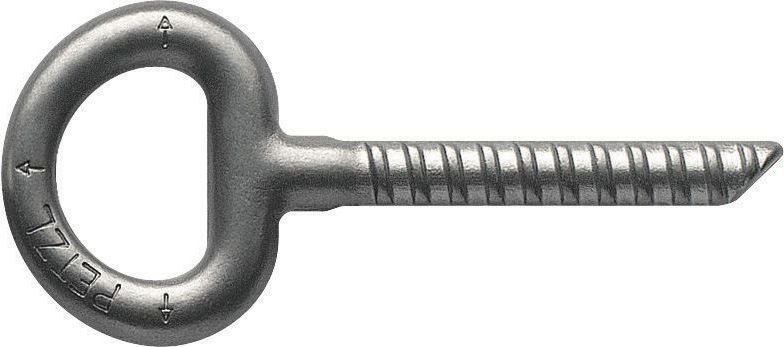

COLLINOX 10 mm resin anchor (pack of 10)

Forged stainless steel glue-in bolt.

Description
10 x 70 mm

Specifications
Material(s): forged stainless steel
Certification(s): EN 959
References
References	G100AA00
Diameter	10 mm
Weight	95 g
Granite, gneiss higher than 80 MPa: preliminary testing recommended
Hard limestone higher than 80 MPa: preliminary testing recommended Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing recommended
Soft rock (soft sandstone, limestone) lower than 45 MPa: preliminary testing required
Very high quality concrete (civil engineering structure) higher than 50 MPa: preliminary testing recommended
Medium quality concrete from 25 to 50 MPa: preliminary testing recommended
Length	7 cm
Drilling depth	7-7,5 cm
Drilling diameter	12 mm
Type of installation	G101AA00 glue (or other glues approved by Petzl)
Suggested drying time	40 min - 10 h
Shear strength in 50 MPa concrete	25 kN
Pull-out strength in concrete 50 MPa	15 kN
Times are given for G101AA00 glue (times may vary depending on the glue used and on the external environment)
