DMCCTBTI Earthing and short-circuiting device for industrial LV switchboards, IP2X
STANDARD(S) : IEC 61230
SPECIFICATIONS :
Max Isc : 4,2 kA/1s
The device is composed of :
• 5 micro-clamps TW 2170
Current : 200A AC
Insulated clamp for connection on :
- hexagonal heads of bolts 10 mm
- vertical or horizontal round bar Ø 6 mm to Ø 12 mm
- power bar horizontal or vertical flat 5 mm thick
- rod Ø 10 mm in the axis of the clamp
• 1 quadrifurcation made of :
- 4 copper short-circuiting cables 16 mm² length 0.5 m
- 1 copper earthing cable 16 mm² length 2,5 m
The complete device is delivered in a transport cover HTAGDC.

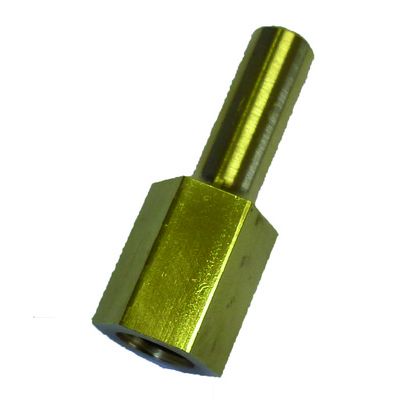

Optional : Adapters - Smooth terminals
Brass smooth terminals for positioning shunts (live working) or earthing and short-circuiting equipment on LV switchboards terminals sets.
DMCCTBTI = Earthing and short-circuiting device for industrial LV switchboards
DMCCTBTI25
DMCCTBTX25
DMCCTBTI35
DMCCTBTX35
